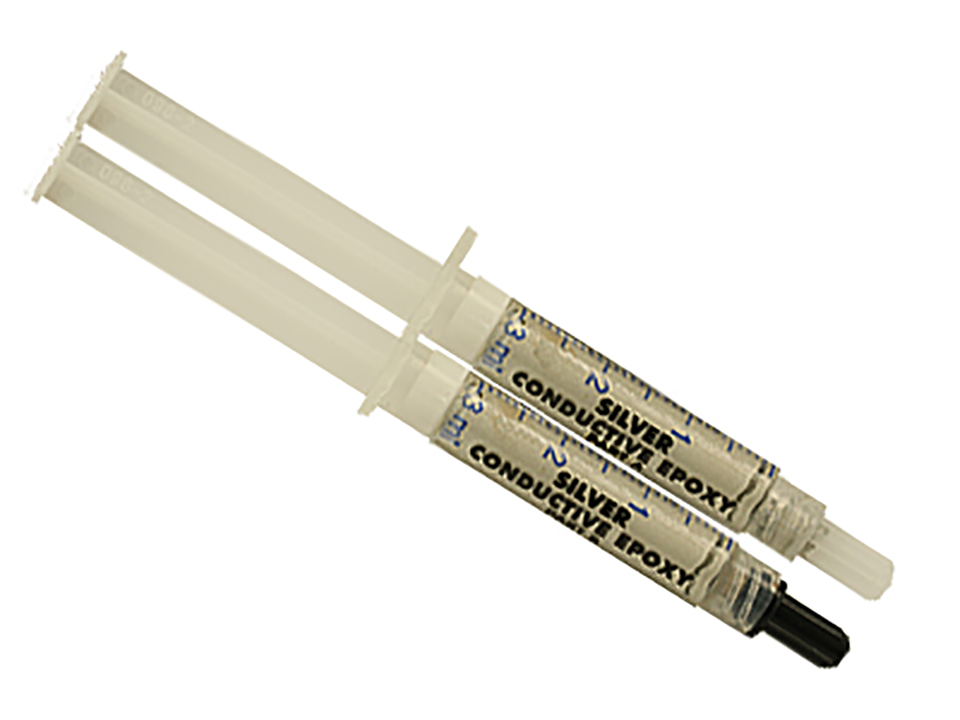

Conductive Silver Epoxy

Our Conductive Silver Epoxy is a silver-filled adhesive designed for use as a conductive structural attachment for surface mount devices such as flexible batteries on polyester, thermoplastic circuitry, and paper phenolic rigid laminates.

What Makes our Epoxies Better?

  • High Flexibility
  • Exceptional Adhesive Strength
  •  Consistent Contact Resistance
  • Low Temp Cure
  • Reduced Cure Time
  • Environmentally Stable
  • Extended screen residence time

Uncured Properties

  • Appearance: Silver
  • Viscosity(Brookfield RV w/ #6 spindle): 22,000 CPS @ 25°C and 20 RPM
  • Total Solids Content: 100%
    Binder: Catalyzed Epoxy
  • Density: 14.8 Lbs. per gallon
    Appearance: Silver

Cured Properties

  • Electrical Contact Resistance: =/< 0.200Ω
  • Adhesion: 100% ASTM Crosshatch
  • Lap Sheer

Processing Guidelines

  • Pot Life ~4-6 hours depending on conditions
  • Mixing 4%-6% by weight of Part B into Part A
  • Curing 2 min @ 140°C 4 min @ 130°C 10 min @ 110°C 20 min @ 80°C

Safety and Handling

  • This product contains organic solvents and materials. The following precautions should be
    exercised when handling this material:
    1. Use with adequate ventilation.
    2. Avoid prolonged contact with skin.
    3. Avoid prolonged respiratory exposure to vapors.
    4. If contact with skin occurs, wash the affected area immediately with soap and
    water.
    5. Do not consume – dangerous if swallowed.
